The graphical symbols provided are for use on operator controls and other displays on fire and rescue apparatus. These symbols are appropriate for vehicles designed to meet NFPA 1901 Standard for Automotive Fire Apparatus, NFPA 1906 Standard for Wildland Apparatus, and NFPA 414 Standard for Airport Rescue and Fire Fighting Vehicles.
Download the pdf file posted below to review Chapters 1-7 which cover: the scope, a list of reference documents used, definitions, a general overview, colors, a process for symbol adaption, and rules of use. Chapters 8-18 cover the complete list of the graphical symbols.
The artwork and information in this area gives the fire and rescue community an option for labeling common controls with a graphical representation of their function. This can be either in place of, or in addition to, the traditional text description. Some symbols have been adopted from already established sources, and many of the symbols are identical or similar to those being developed for use in Europe.
| Symbol Number
|
Download Symbol |
Graphical Symbol |
Symbol Description/Application |
Reference Number |
Reference Standard |
|
10.01 |
|
|
Water Discharge Replace “N” with a
number designation so that the
corresponding control, gauge, and
function or device all match.
|
None |
— |
|

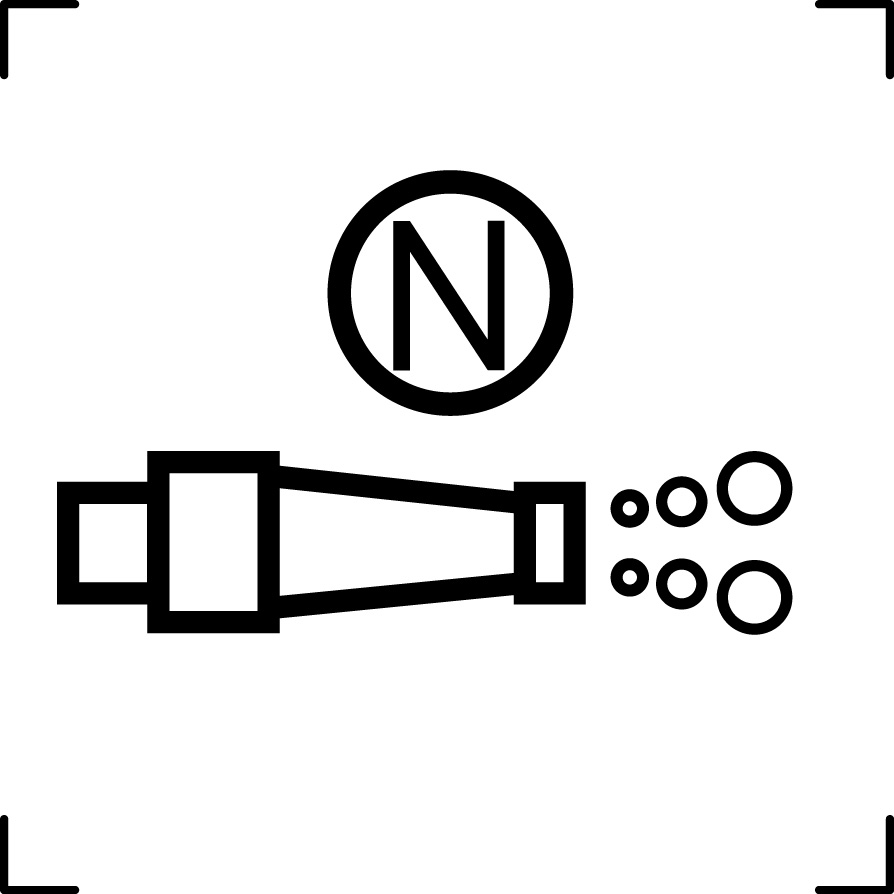

10.02 |
|
|
Foam Discharge Replace “N” with a
number designation so that the
corresponding control, gauge, and
function or device all match.
|
None |
— |
|
10.03 |
|
|
CAFS Discharge Replace “N” with a
number designation so that the
corresponding control, gauge, and
function or device all match.
|
None |
— |
|

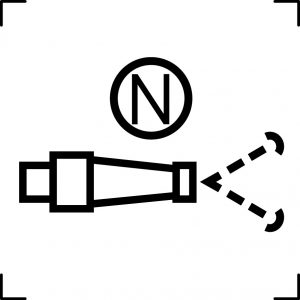

10.04 |
|
|
Powder Discharge Replace “N” with
a number designation so that the
corresponding control, gauge, and
function or device all match.
|
None |
— |
|

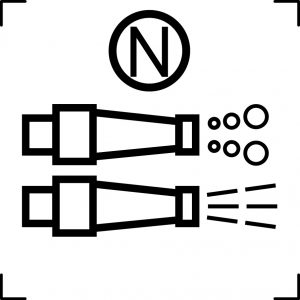

10.05 |
|
|
Foam or Water Discharge Replace
“N” with a number designation so that
the corresponding control, gauge, and
function or device all match.
|
None |
— |
|

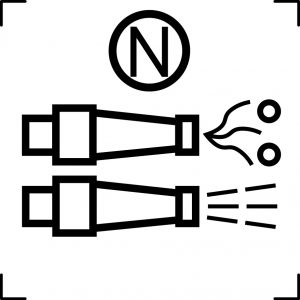

10.06 |
|
|
CAFS or Water Discharge Replace
“N” with a number designation so that
the corresponding control, gauge, and
function or device all match.
|
None |
— |
|
10.07 |
|
|
Stream
|
None |
— |
|

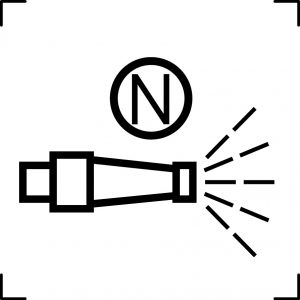

10.08 |
|
|
Fog
|
None |
— |
|

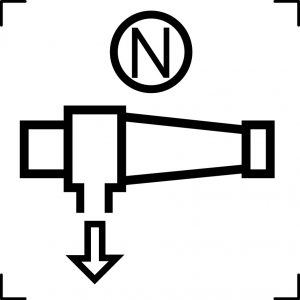

10.09 |
|
|
Discharge Drain or Bleeder Replace
“N” with a number designation so that
the corresponding control, gauge, and
function or device all match.
|
None |
— |
|

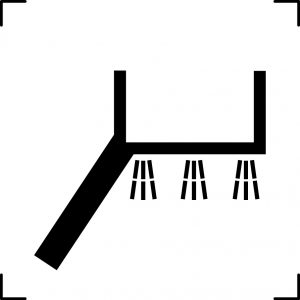

10.10 |
|
|
Aerial Platform Water Curtain
|
None |
— |
|

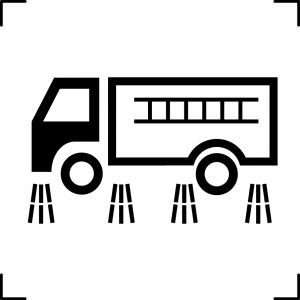

10.11 |
|
|
Pavement Cooler Discharge
|
None |
— |
|

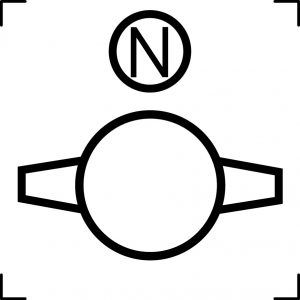

10.12 |
|
|
Intake Replace “N” with a number
designation so that the corresponding
control, gauge, and function or device
all match.
|
None |
— |
|

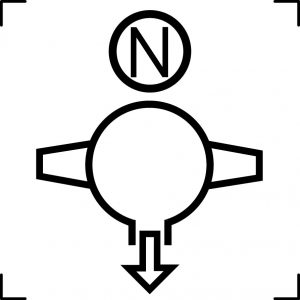

10.13 |
|
|
Intake Drain or Bleeder Replace “N”
with a number designation so that the
corresponding control, gauge, and
function or device all match.
|
None |
— |
|
10.14 |
|
|
Foam Intake
|
None |
— |
|
10.15 |
|
|
Remote Monitor Replace “N” with a
number designation so that the
corresponding control, gauge, and
function or device all match.
|
None |
— |
|

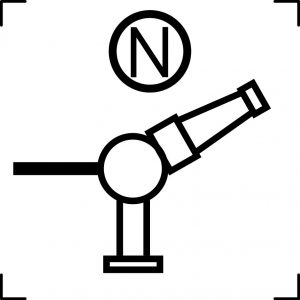

10.16 |
|
|
Manual Monitor Replace “N” with a
number designation so that the
corresponding control, gauge, and
function or device all match.
|
None |
— |
|

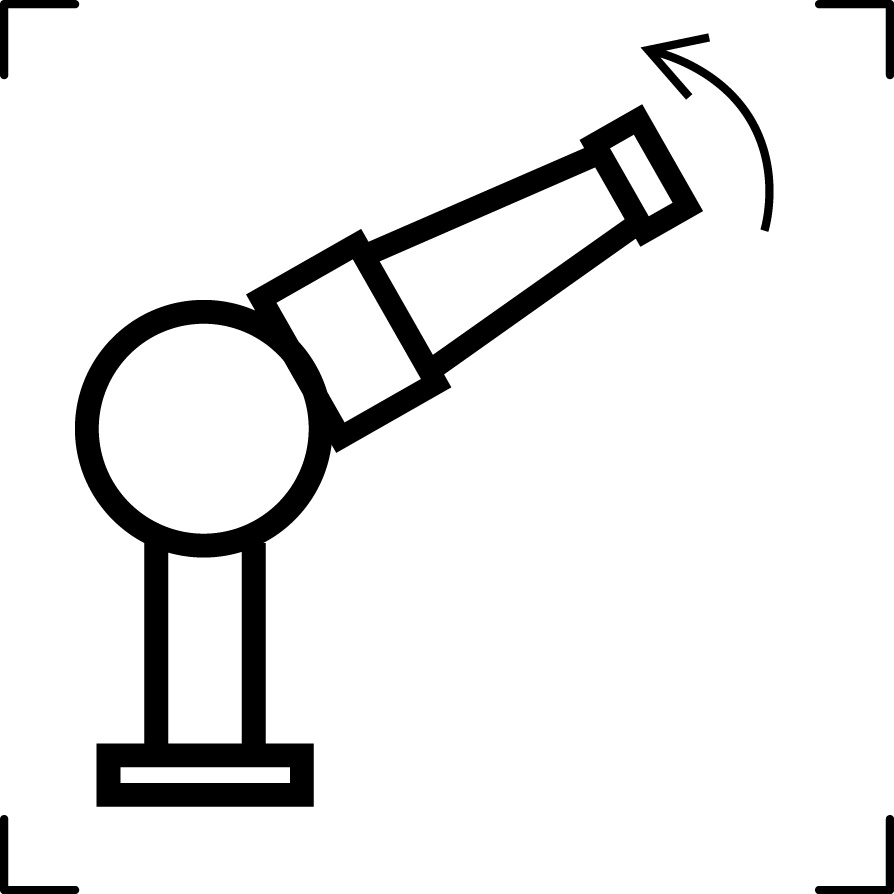

10.17 |
|
|
Monitor Elevate
|
None |
— |
|
10.18 |
|
|
Monitor Depress
|
None |
— |
|

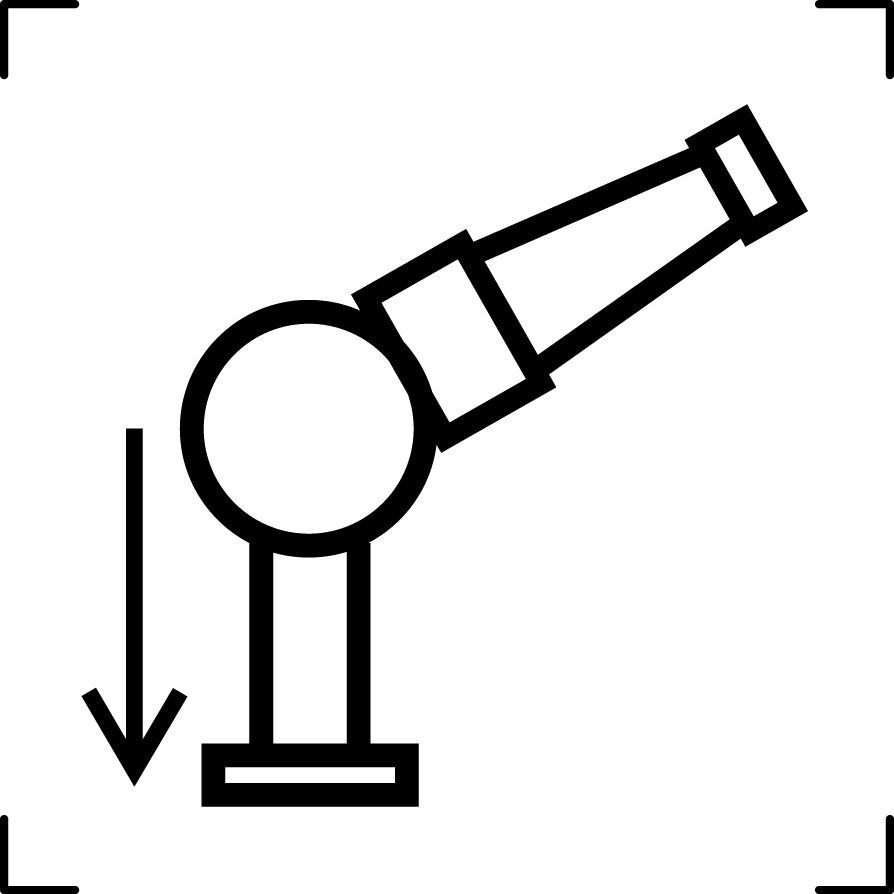

10.19 |
|
|
Monitor Lower
|
None |
— |
|
10.20 |
|
|
Monitor Raise
|
None |
— |
|

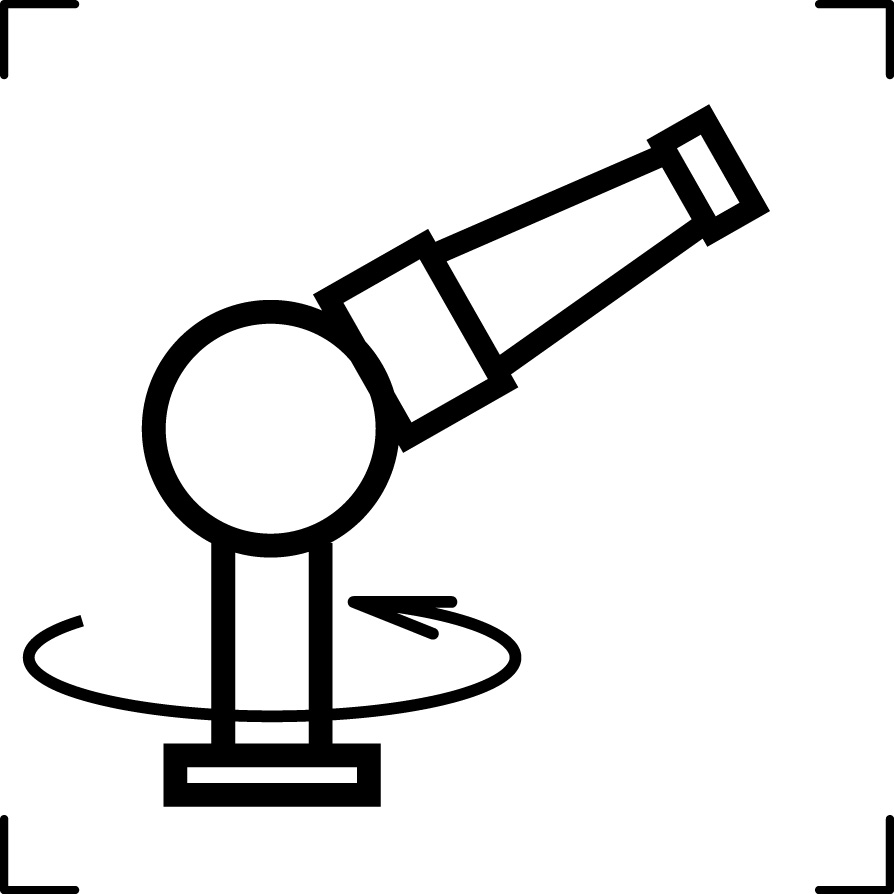

10.21 |
|
|
Monitor Rotate CCW
|
None |
— |
|

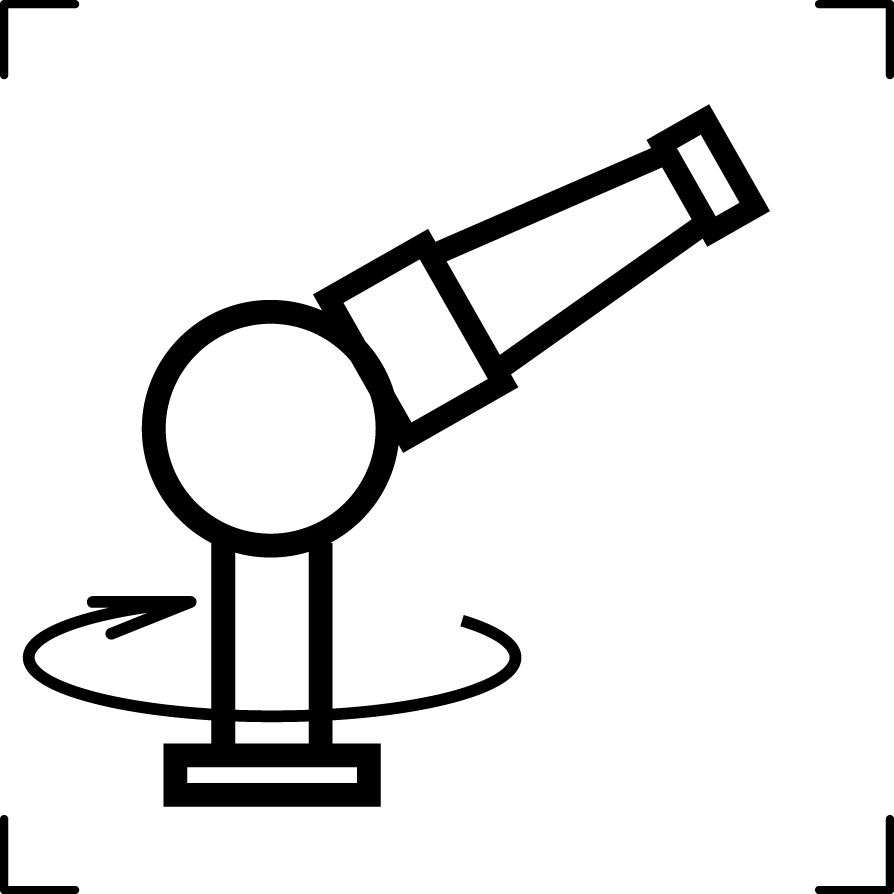

10.22 |
|
|
Monitor Rotate CW
|
None |
— |
|

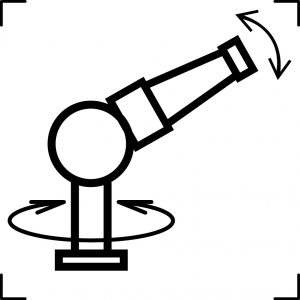

10.23 |
|
|
Monitor Oscillate
|
None |
— |
|

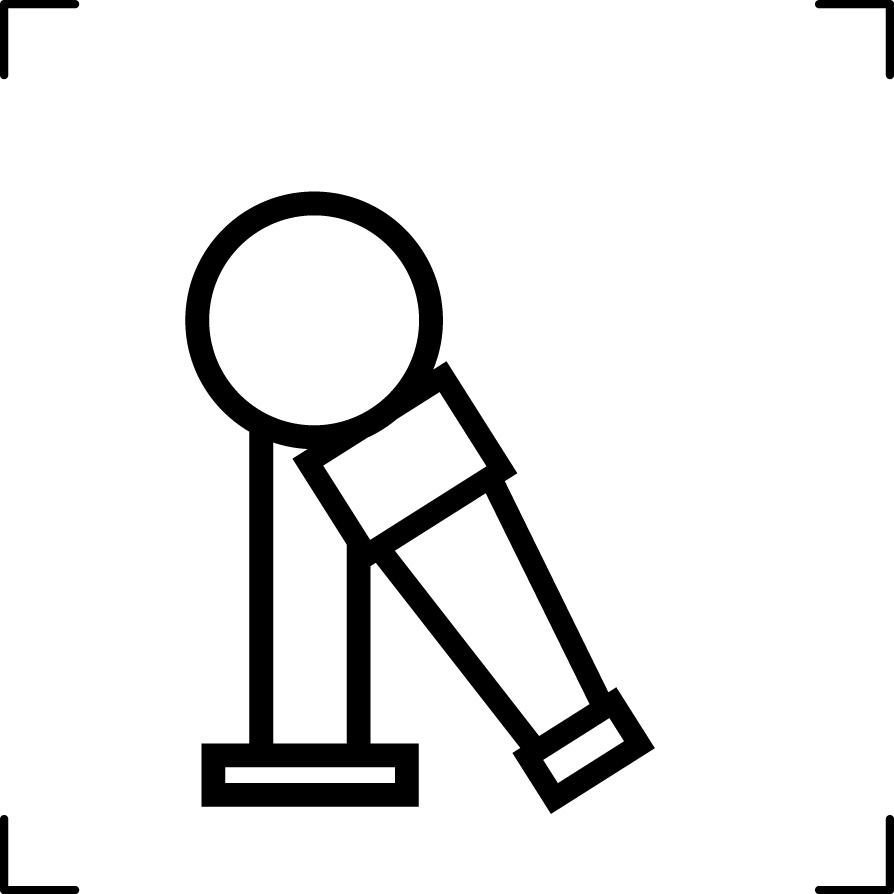

10.24 |
|
|
Monitor Stow
|
None |
— |
|
10.25 |
|
|
Monitor Drain or Bleed
|
None |
— |
|
10.26 |
|
|
Aerial Water Discharge
|
None |
— |
|

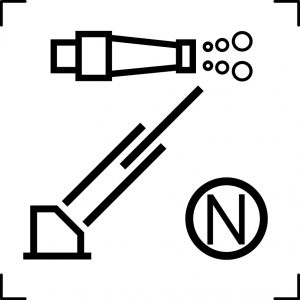

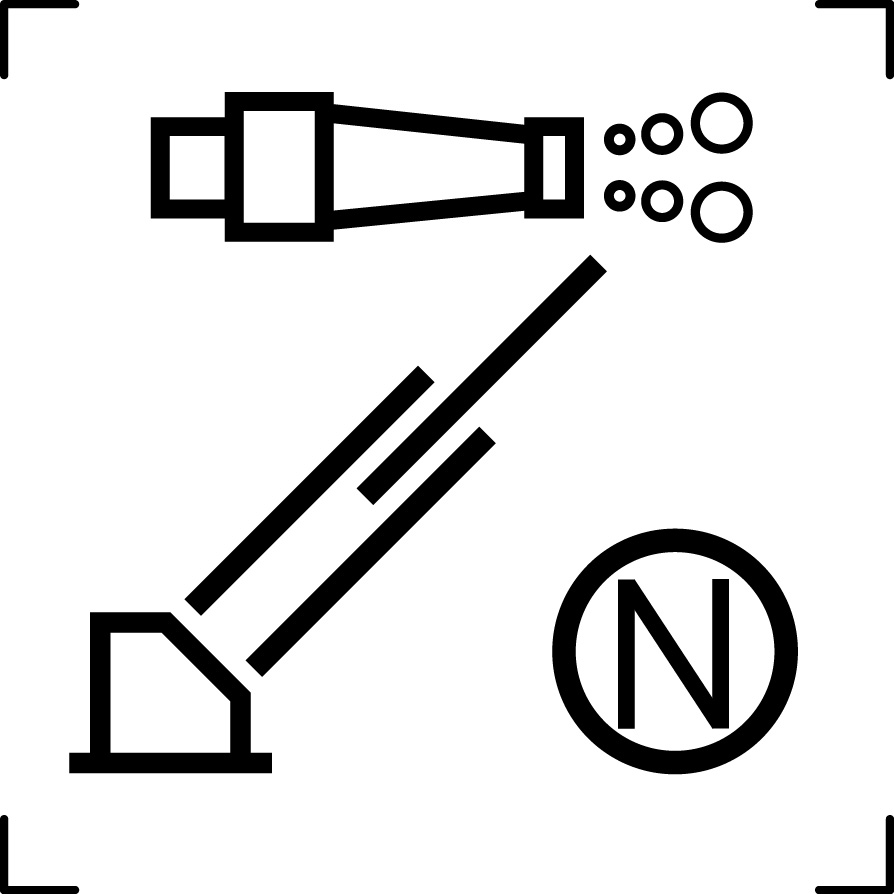

10.27 |
|
|
Aerial Foam Discharge
|
None |
— |
|

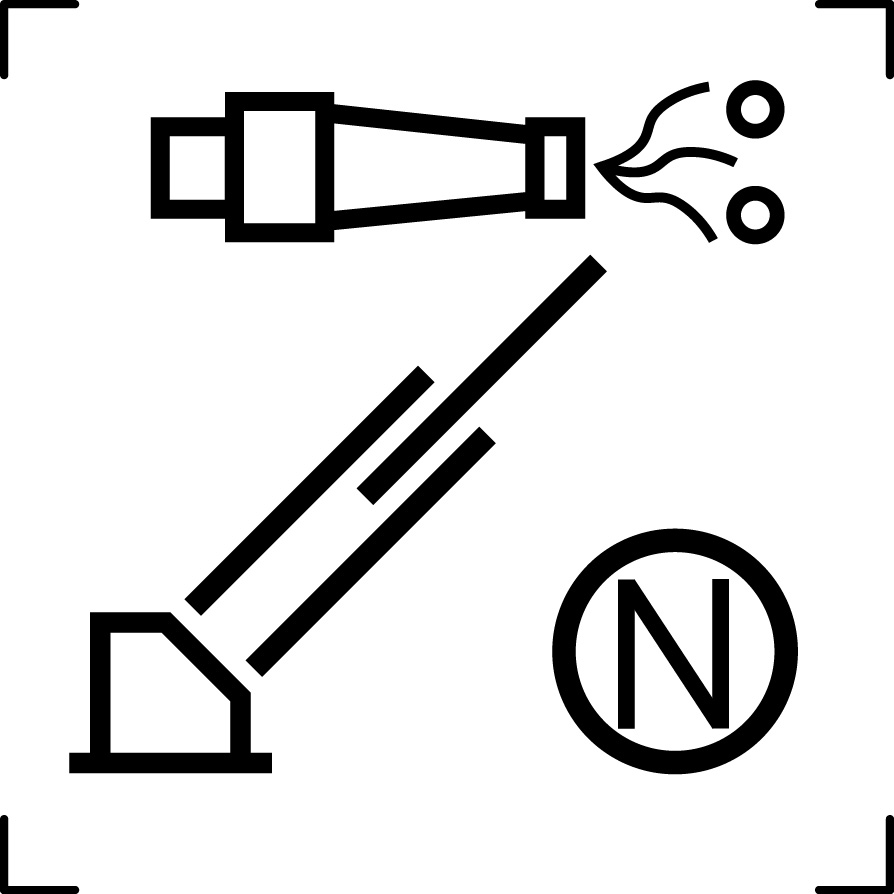

10.28 |
|
|
Aerial CAF Discharge
|
None |
— |
|
10.29 |
|
|
Aerial Powder Discharge
|
None |
— |
|

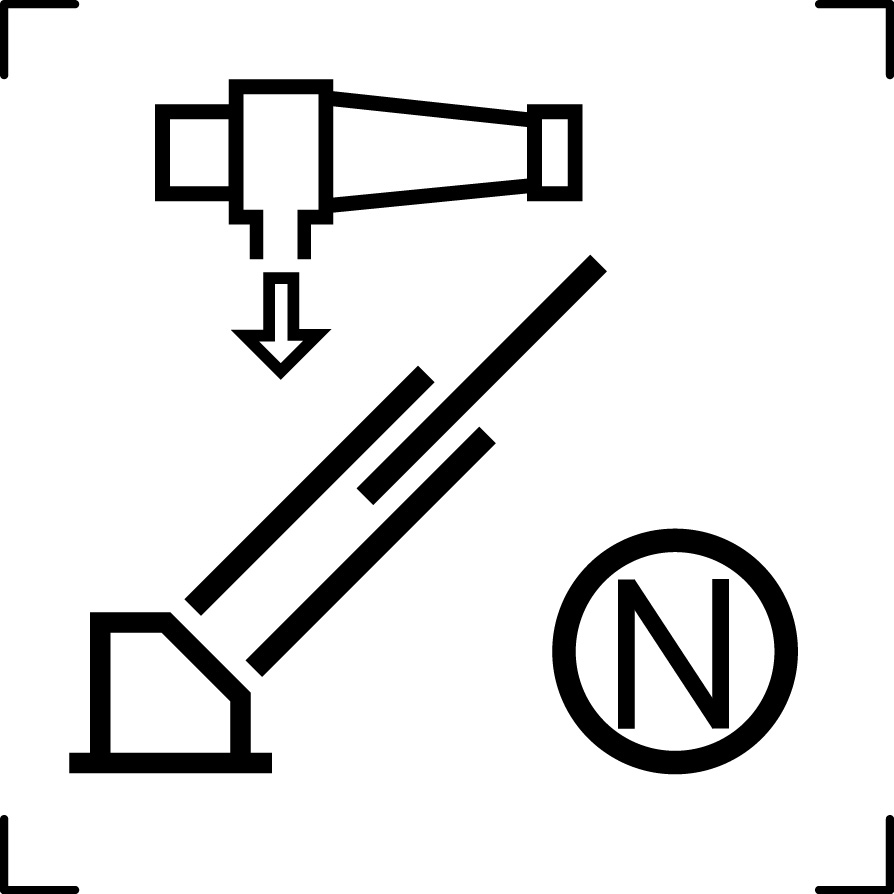

10.30 |
|
|
Aerial Discharge Drain
|
None |
— |
|
10.31 |
|
|
Aerial Intake
|
None |
— |
|
10.32 |
|
|
Shower Discharge
|
None |
— |
|

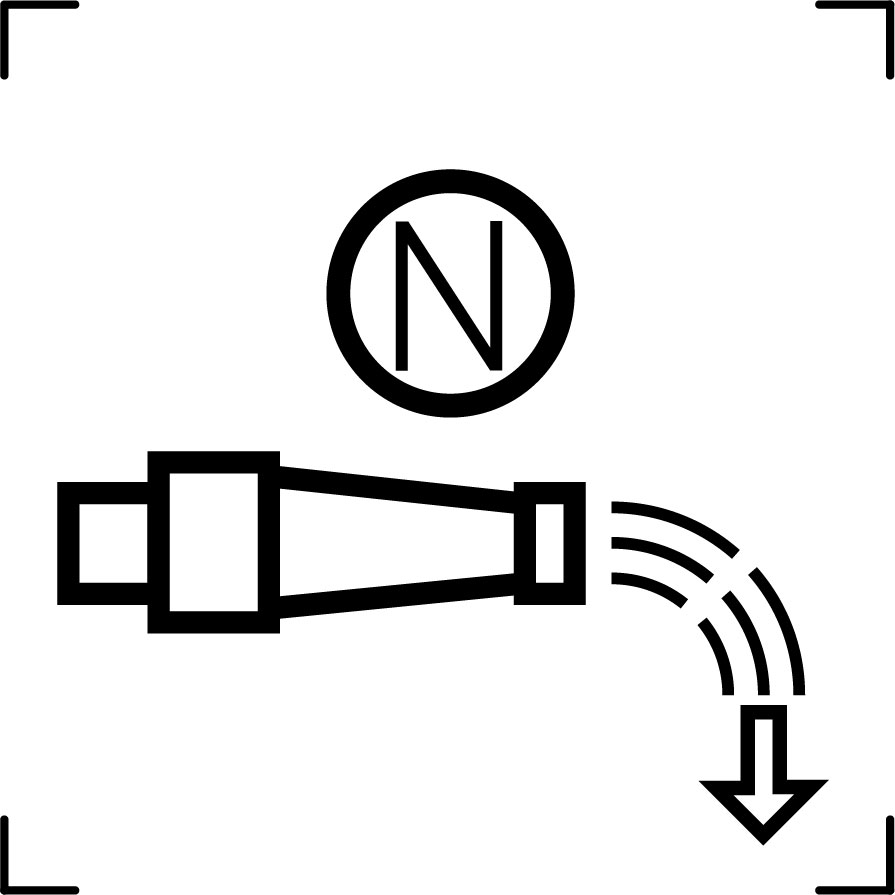

10.33 |
|
|
Nozzle Flush
|
None |
— |
|

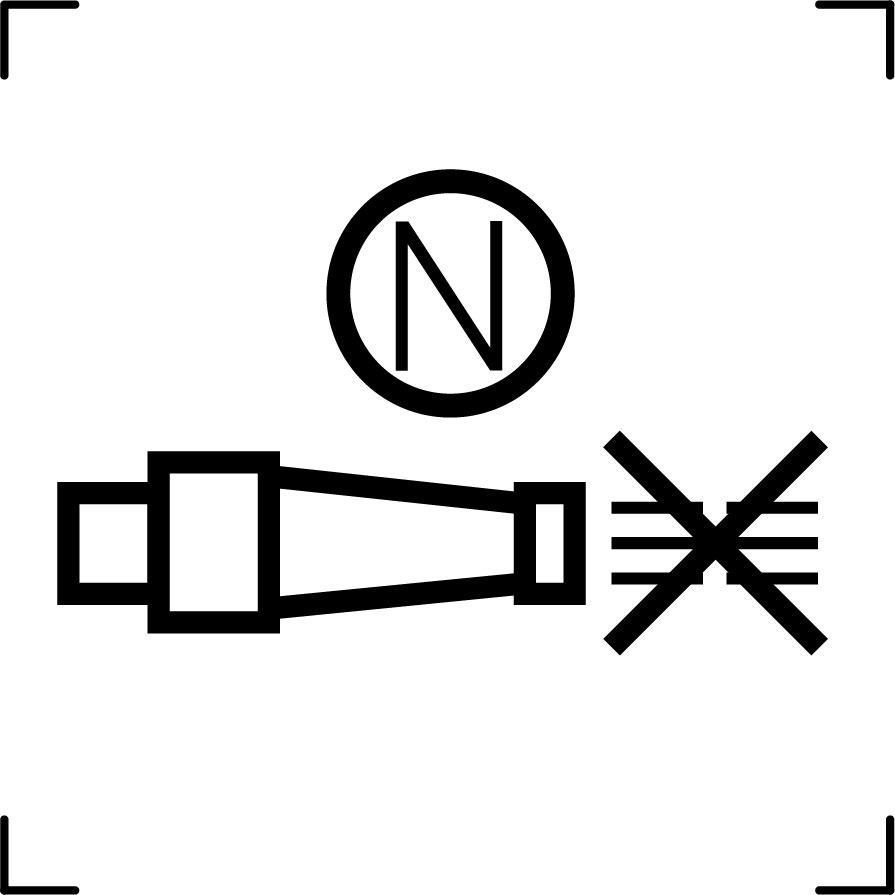

10.34 |
|
|
None |
— |
|

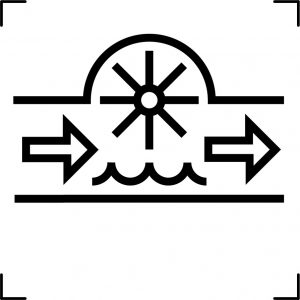

10.35 |
|
|
Water Flow Rate
|
None |
— |
|
10.36 |
|
|
Water Flow Total
|
None |
— |
