The graphical symbols provided are for use on operator controls and other displays on fire and rescue apparatus. These symbols are appropriate for vehicles designed to meet NFPA 1901 Standard for Automotive Fire Apparatus, NFPA 1906 Standard for Wildland Apparatus, and NFPA 414 Standard for Airport Rescue and Fire Fighting Vehicles.

Download the pdf file posted below to review Chapters 1-7 which cover: the scope, a list of reference documents used, definitions, a general overview, colors, a process for symbol adaption, and rules of use. Chapters 8-18 cover the complete list of the graphical symbols.

The artwork and information in this area gives the fire and rescue community an option for labeling common controls with a graphical representation of their function. This can be either in place of, or in addition to, the traditional text description. Some symbols have been adopted from already established sources, and many of the symbols are identical or similar to those being developed for use in Europe.

Symbol Number Download Symbol Graphical Symbol Symbol Description/Application Reference Number Reference Standard
11.01

Tank

None

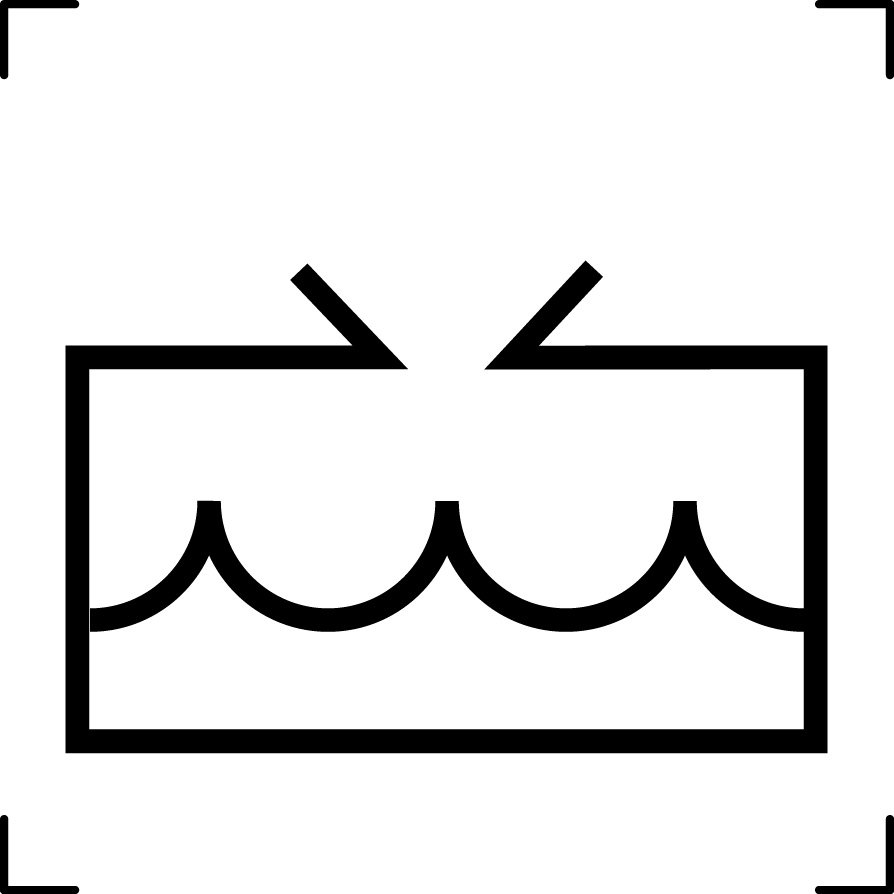

11.02

Water Tank

3.5.1 CEN 15989
11.03

Foam Tank

3.5.2 CEN 15989

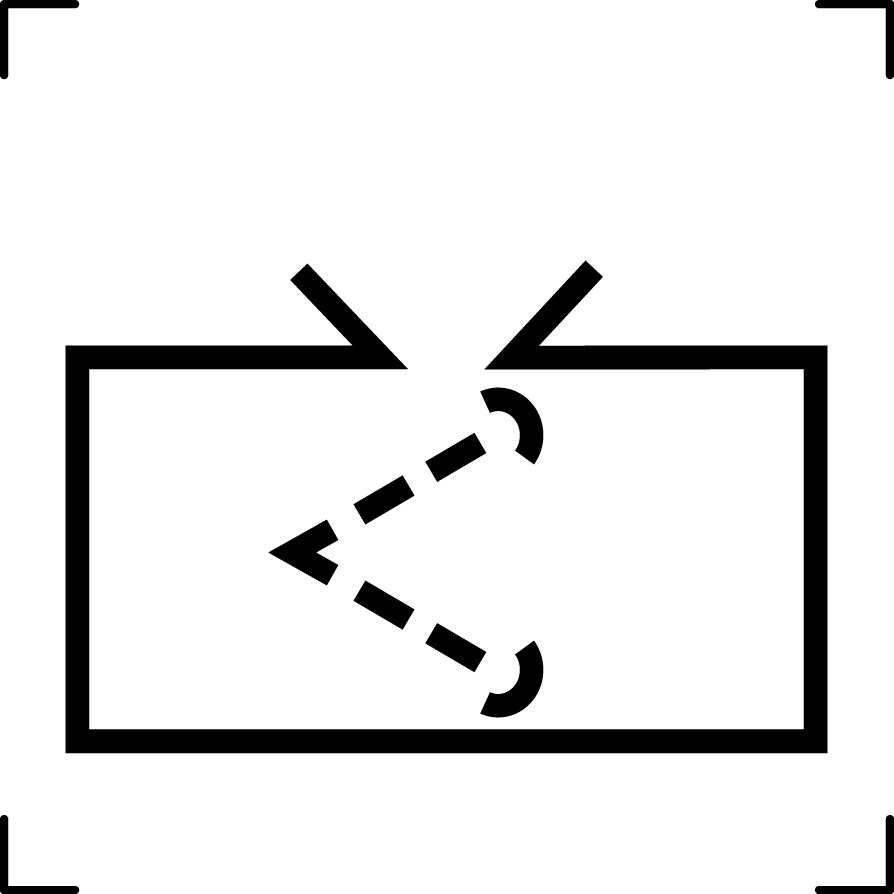

11.04

Powder Tank

None
11.05

Hydraulic Tank

None
11.06

Tank Fill

3.5.3 0028 CEN 15989 ISO 7000
11.07

Water Tank Fill
Use this symbol for both top and direct tank fill locations.

None

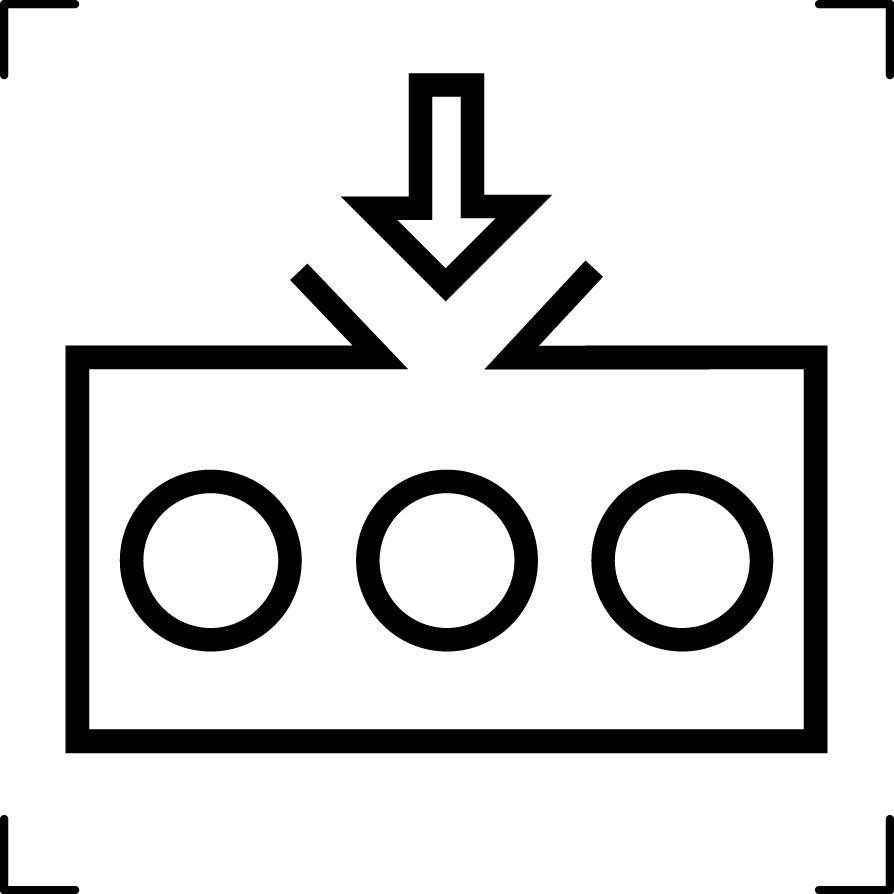

11.08

Foam Tank Fill

None

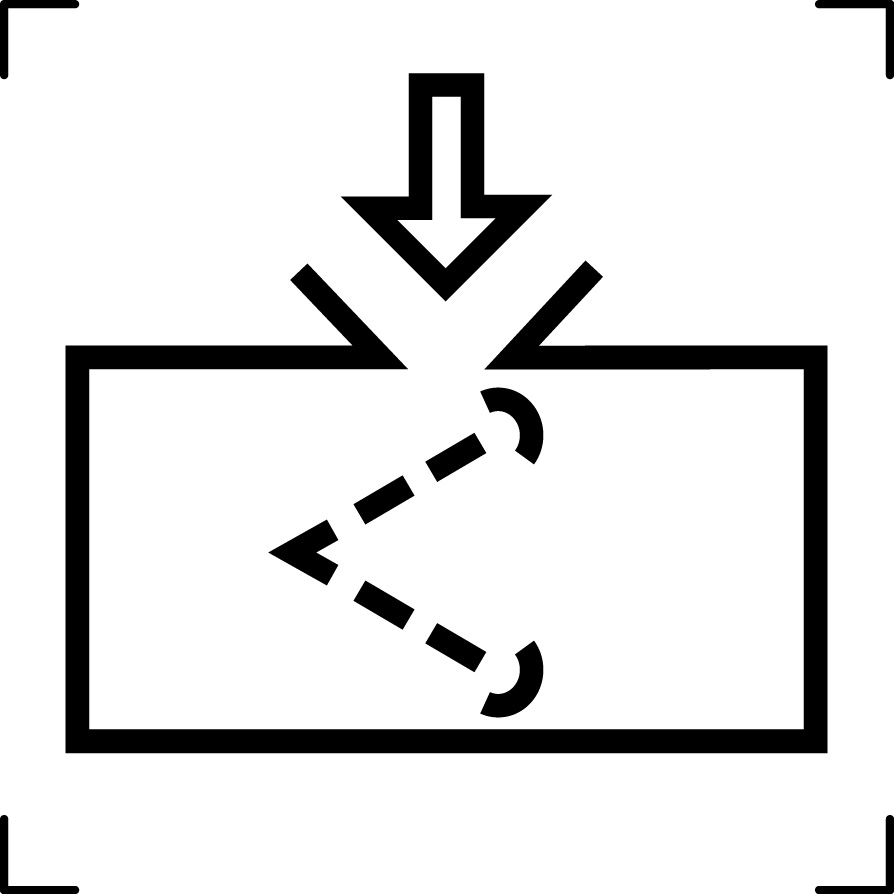

11.09

Powder Tank Fill

None
11.10

Hydraulic Tank Fill

None
11.11

Tank Outlet

3.5.7 CEN 15989

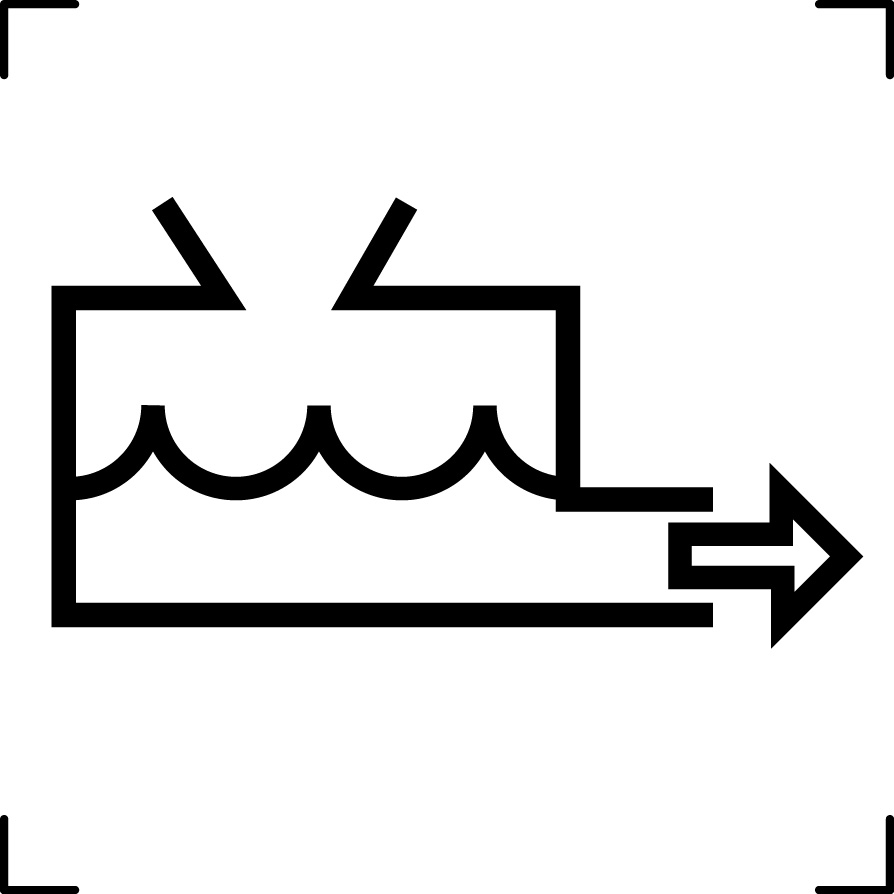

11.12

Water Tank Outlet

None
11.13

Foam Tank Outlet

None
11.14

Tank Drain

3.5.6 0029 CEN 15989 ISO 7000
11.15

Water Tank Drain

None
11.16

Foam Tank Drain

None
11.17

Hydraulic Tank Drain

None
11.18

Tank Level

3.5.9 CEN 15989

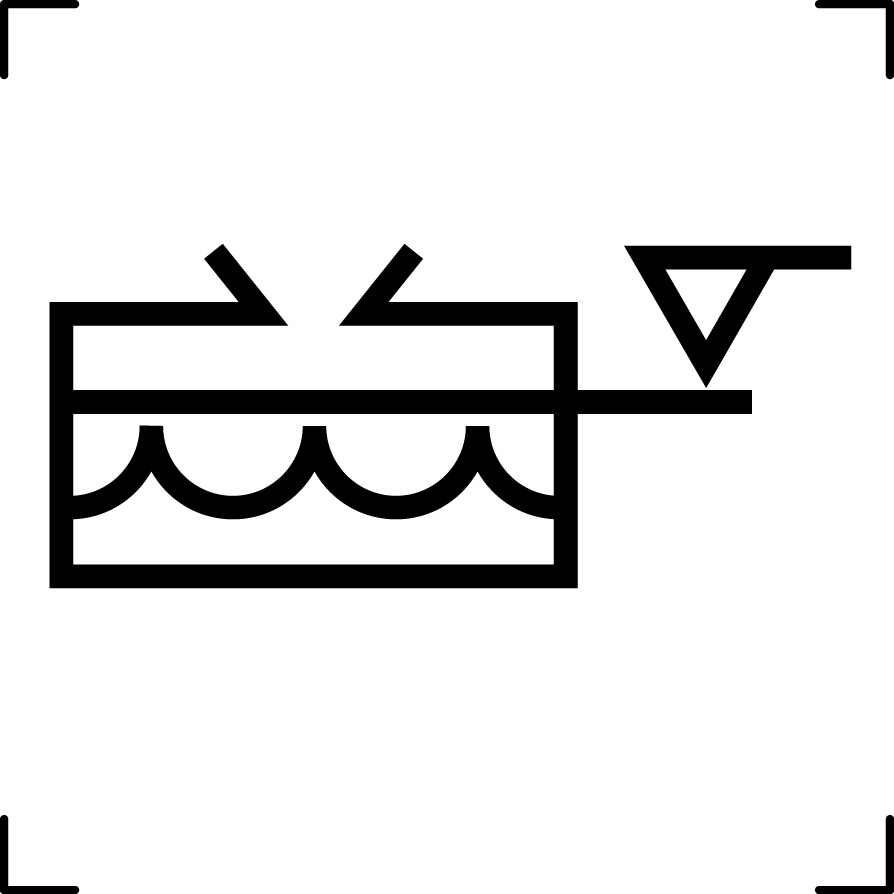

11.19

Water Tank Level

None
11.20

Foam Tank Level

None

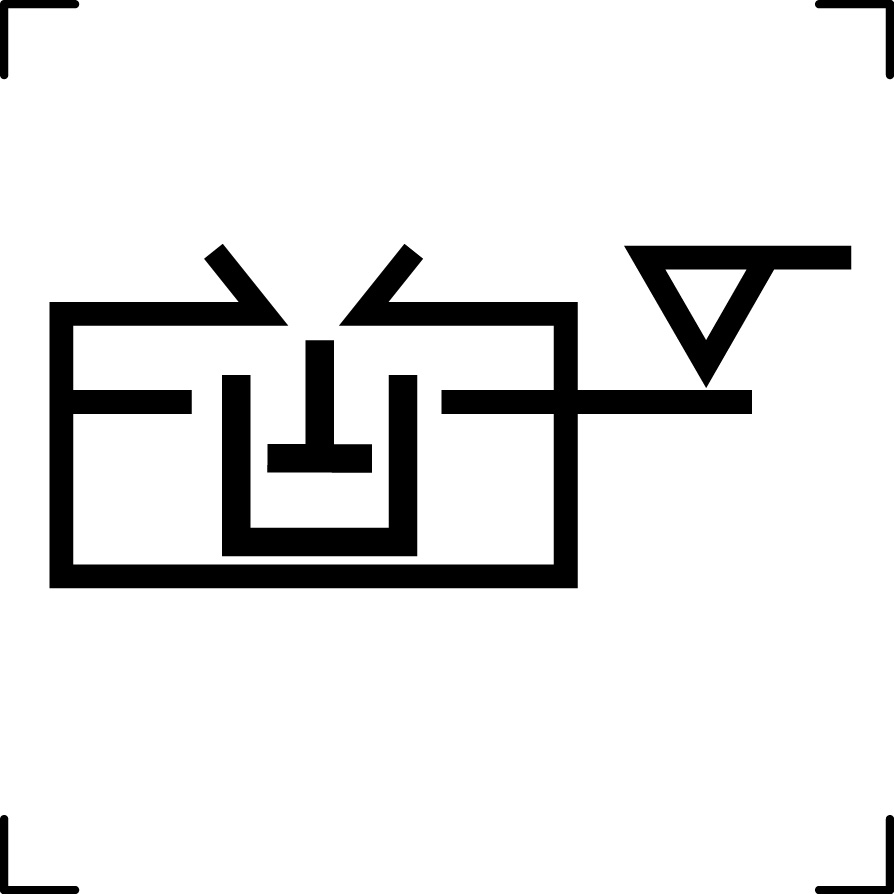

11.21

Hydraulic Tank Level

None
11.22

Water Tank Heater

None
11.23

Halotron Tank Fill

None

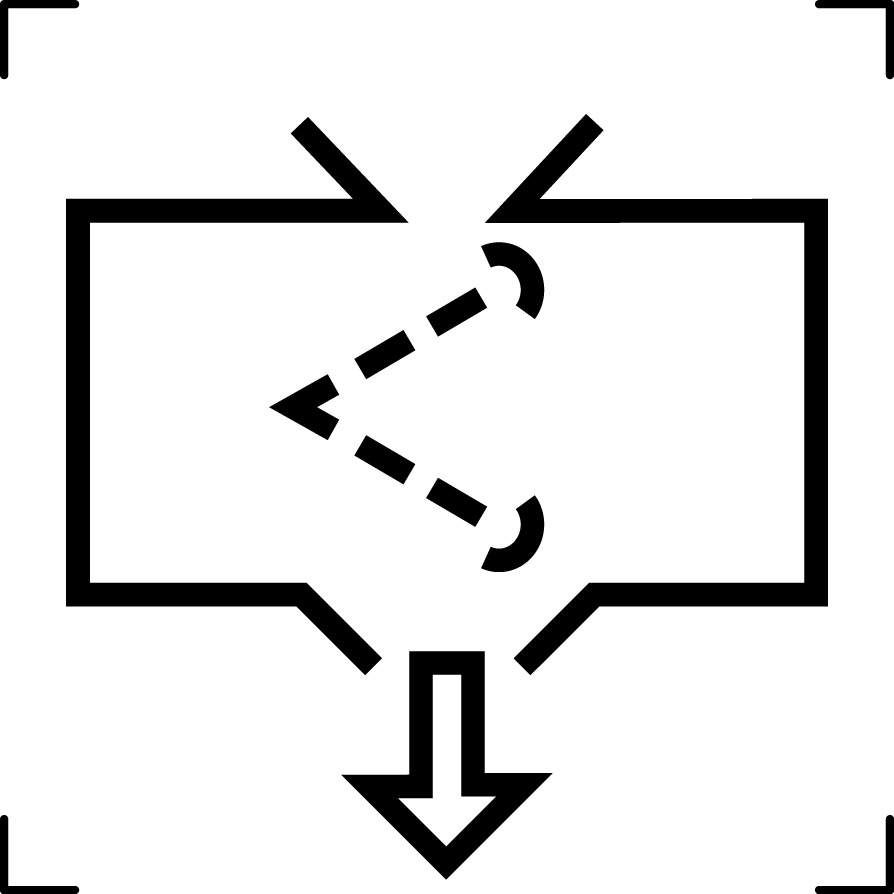

11.24

Powder Tank Drain

None
